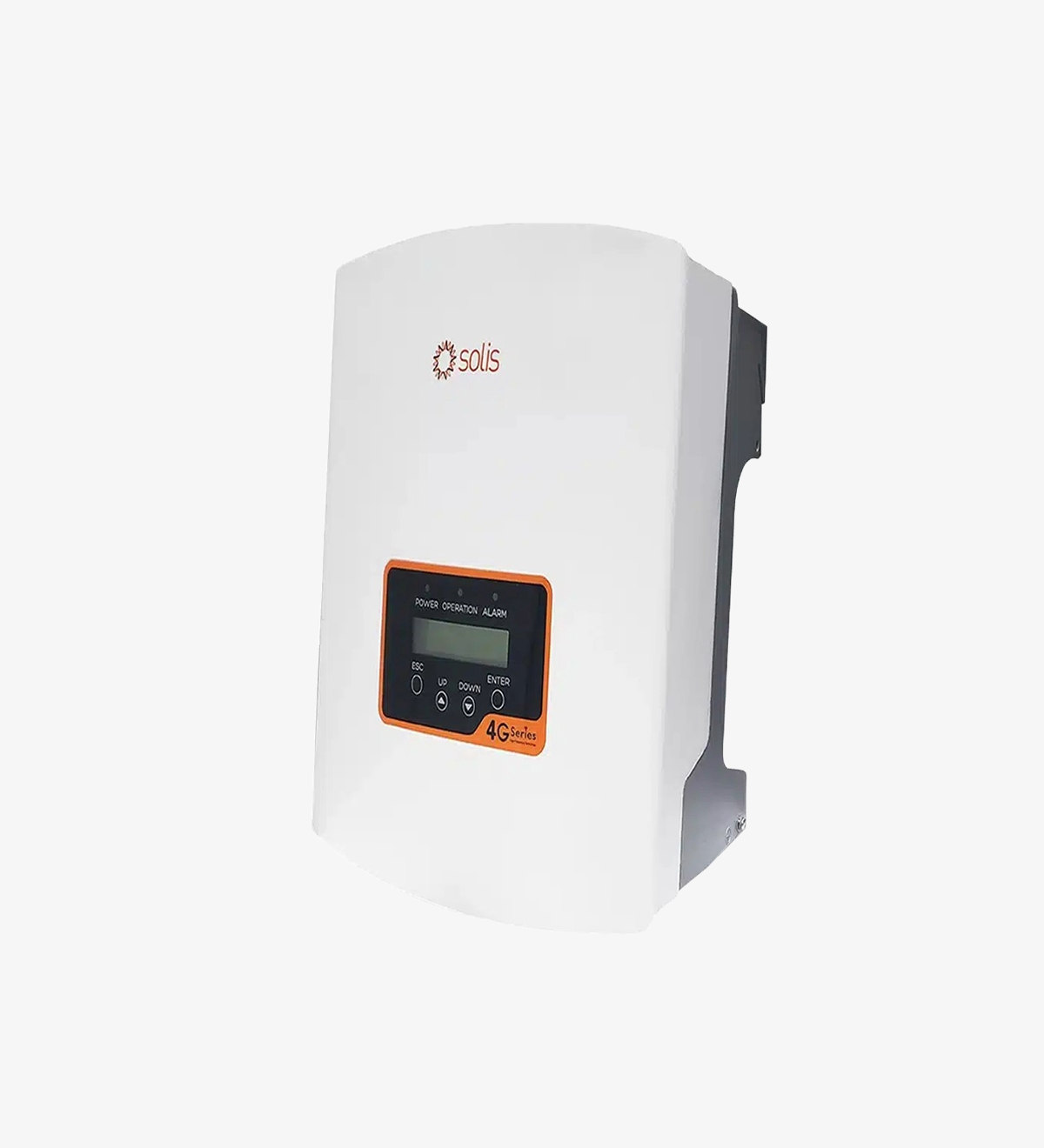

Solis on Grid Inverter 30kw
High-performance, reliable, and efficient inverter for large-scale solar energy systems. Perfect for commercial and industrial applications.
Description
Description:
- Efficiency 98.8%
- Wide voltage range and low start-up voltage
- 4 MPPT input, each rated current is 28.5A, compatible with high power module
- THDi<3%, low harmonic distortion against grid
- Anti-resonance, supporting over 6MW paralleled in one transformer
- Perfect Commercial side monitoring solution
- Intelligent redundant fan-cooling
Key Features
- High Efficiency:
Industry-leading efficiency of up to 98.8% ensures maximum energy utilization. - Advanced MPPT Technology:
Features three Maximum Power Point Trackers (MPPT) to optimize power generation under variable sunlight conditions. - Smart Monitoring Options:
Supports remote monitoring through WiFi, GPRS, or Ethernet via the SolisCloud platform. - Compact Design:
Lightweight and compact for easy installation and maintenance. - Grid-Friendly:
Fully compatible with smart grid technologies, including reactive power control and zero export functionality. - Rugged Build:
IP65-rated for protection against dust and water, ensuring reliable outdoor performance. - Wide DC Input Voltage Range:
Allows greater flexibility in designing your solar system. - Quiet Operation:
Noise level under 30dB, suitable for noise-sensitive environments.
Technical Specifications
| Category | Details |
|---|---|
| Model | Solis 30kW On-Grid Inverter |
| Max DC Input Power | 45,000W |
| Max DC Voltage | 1,100V |
| MPPT Voltage Range | 200V – 1,000V |
| Number of MPPTs | 3 |
| Max Input Current | 36A per MPPT |
| AC Output Power | 30,000W |
| Output Voltage Range | 220/380V, 230/400V |
| Max Efficiency | 98.8% |
| Communication Interface | RS485, WiFi/GPRS/Ethernet |
| Operating Temperature | -25°C to +60°C |
| Noise Level | < 30dB |
| Weight | 38kg |
| Dimensions | 520mm x 650mm x 213mm |
| Warranty | 5 Years |
